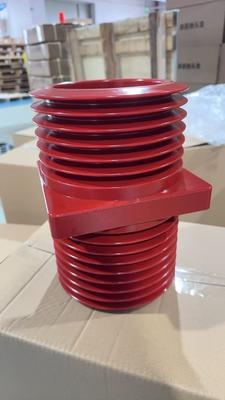

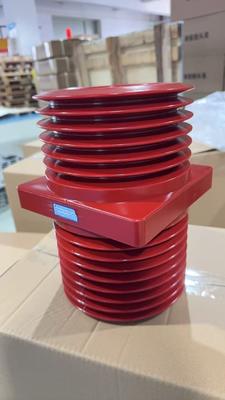

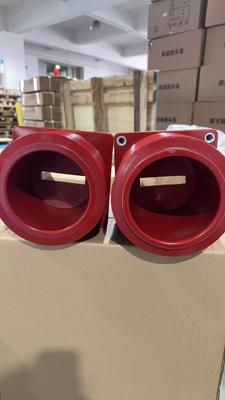

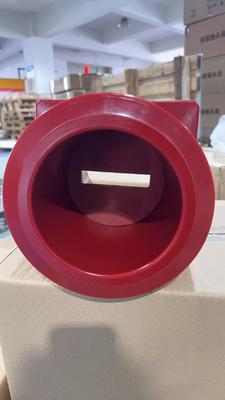

24kv Casting Resin Switch Cabinet Through Wall Bushing for Single Copper Bus-Bar
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Materiaal | Epoxyhars/giethars | Kleur | Rood |
|---|---|---|---|
| Nominale spanning | 24kV | Frequentiespanning | 68 kV |
| Kruip afstand | 400 mm | Higth | 280 mm |
| Kracht | 10kn | ||
| Markeren | 24kv epoxy resin bushing,casting resin switch cabinet bushing,single copper bus-bar through wall bushing |
||
Productomschrijving
24kv Casting Resin Switch Cabinet Through Wall Bushing for Single Copper Bus-Bar
The casing can be divided into five types according to the place of use: indoor common type, outdoor common type, outdoor type, outdoor type, outdoor-indoor high prototype and outdoor type.
The common type is generally suitable for the installation site within 1000 M above sea level.
The common type of outdoor home is generally suitable for the area with an installation site not exceeding 1000M above sea level, but the installation site should be a no-obvious area.
The outdoor indoor anti-fouling type is suitable for installation site not exceeding 1000M above sea level. For severe and heavy fouling area, 63kV oil paper capacitive perforating wall casing can be used.
The outdoor high prototype is suitable for the installation site below 3000 M.
An outdoor interior plateau anti-fouling type is suitable for the installation of the site below 3000m above sea level in the filthy area.
The casing can be divided into three types: aluminum conductor, copper conductor and non conductor(busbar type) according to the conductor material used .
| Current | Bus-bar |
| 630A | 90*20 |
| 1250A | 135*25 |
