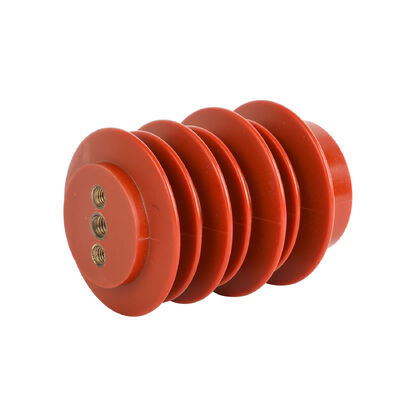

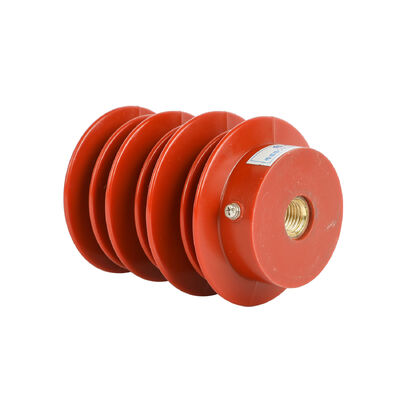

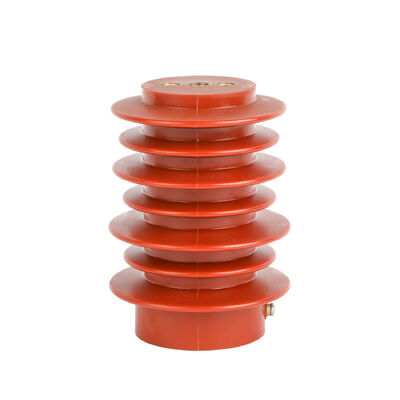

11kv Epoxy Resin Casting Resin Support Capacity Insulator with High Voltage Indoor Switchgear
Productdetails
| Materiaal | Epoxyhars | Kleur | Rood |
|---|---|---|---|
| Kruipafstand | 280 mm | Tarief spanning | 11kV |
| Frequentie Spanning | 42kV | Buigsterkte | 10 kN |
| Capaciteit | 20-125pF |
Productomschrijving
11kv Epoxy Resin Casting Resin Support Capacity Insulator with High Voltage Indoor Switchgear
Advantages for insulators
1. Small size ,light weight
2. Excellent anti-pollution performance
3. Good aging resistance and anti-pollution performance
4. Easy to installation and transportation
5. Not brittle,and reduce the purchasing quantities for spare parts
4. Easy to installation and transportation
5. Not brittle,and reduce the purchasing quantities for spare parts
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 3.6 | 7.2 | 12 | 24 | 40.5 | ||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 25 | 32 | 42 | 68 | 100 | ||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 40 | 60 | 75 | 125 | 185 | ||||||||
| Local discharge (pc) | ≤10 | ||||||||||||
| Dispute bend (N) | ≥10000 | ||||||||||||
| Capacity | 125pF | ||||||||||||
We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . The load switch adopts the pressure gas internal blowing structure, the arc extinguishing ability is strong, and does not affect the interphase and ground insulation, both the dynamic and static contacts have the arc contact, greatly increased the number of breakdowns.
